.h1.f-headline.fw1[
Bayesian Analysis
]

.h2.f-subheadline.lh-title[
and Decision Theory
]
<br><br>
.h1.f1.lh-title[
NAMV005
]
<br><br><br><br><br>
.f3.lh-title[
Lund 2022
]
---
# Course content

|Topic|Format| Date |
|-----|------|------|
| Introduction to Bayesian inference and subjective probability <br> Conjugate models| Review <br> Lecture | 17 Jan 2022 |
| Conjugate models (review and exercises) <br> Modern Bayesian analysis with MCMC | Review <br> Lecture | 24 Jan 2022 |
| Modern Bayesian analysis with MCMC (review and exercises) <br> Hierarchical models | Review <br> Lecture | 31 Jan 2022 |
| Hierarchical models (review and exercises) <br> Decision theory <br> Literature seminar | Review <br> Lecture <br> Seminar | 07 Feb 2022 |

---
class: center, middle, inverse

# Models

---
# Models are tools

McElreath(2020) recites the story of the Golem of Prague
 - animated by truth [*emet*], but lacking free will
 - invented to defend, but decommissioned due to innate danger [*met*]

Scientific models are like golems: they do what you tell them to, but only that. They are neither true nor false.

Models are used:
 - to predict
   - predictive models (ML)
   - often relevant in risk/decision context
 - to understand how the world works
   - inferential models
   - means of producing scientific knowledge
   - study of (causal) effects

Instead of solving the real problem, we are making a practical compromise and being, of necessity, content with an approximate solution (Jaynes 2003).

---
class: center, middle, inverse

# probability

### /ˌprɒbəˈbɪlɪti

---
# Perspectives on probability

Schools of thought on probability<sup>[1]</sup>:
- Classical (Laplace, Bayes) - the "set" definition

- Frequentist (Pearson, Fisher, Popper, von Mises) - the "series" definition

- Logical (Keynes, Jeffreys, Jaynes)<sup>[2]</sup> - the "plausibility" definition

- Subjectivist (de Finetti, Ramsey)<sup>[3]</sup> - the "opinion" definition

- Knightnian (Knight, the "imprecise probability" school) - the "uncertainty vs risk" definition
.pull-left[]

.pull-right[
![](https://upload.wikimedia.org/wikipedia/commons/f/f8/Blind_men_and_elephant3.jpg)
]
.footnote[
[1] Acree (2021)
[2] Clayton (2021)
[3] N-E Sahlin (1990)
]
---
# Classical probability

Conditional probability
>If of the two subsequent events, the probability of the 1st be `$a/N$` and the probability of both together be `$P/N$`, then the probability of the 2nd on the supposition the 1st happens is `$P/a$`.
`$P(B|A)=P(A \& B)/P(A)$`

Bayes, hesitantly, concluded that time does not distinguish between the events and therefore that the relationship between `$A$` and `$B$` is *not necessarily causal*. `$P(A|B)P(B)=P(B|A)P(A)$`

Laplace's law of succession
> If an urn contains an infinity of white and black tickets in an unknown ratio, and if p + q tickets are drawn of which p are white and q are black, we ask the probability that in drawing a new ticket from this urn it will be white.

Laplace suggested to replace a *single urn* of unknown constitution with an *infinity of urns* of known constitution
`$$\frac{\int_0^1x^{p+1}(1-x)^qdx}{\int_0^1x^{p}(1-x)^qdx}=\frac{p+1}{p+q+2}$$`

---
# Frequentist probability

Bernoulli (1655-1705) in *Ars Conjectandi*:
If you take a **large enough sample**, you can be **sure**, that the proportion of white pebbles you observe in the sample is **close** to the proportion in the urn (Law of Large Numbers).
> "The sample ratio is close to a *given urn ratio* with a high probability" vs "The urn ratio is close to a *given sample ratio* with high probability."

.pull-left[
- Fascination with the normal curve and deviations from average (Adolphe Quetelet)
- Galton's natural selection and eugenics. Reversion (or *regression*) towards mediocrity in hereditary studies
- Pearson - numerical measure of normality `$\chi^2$`.
- Young genius Fischer. Break-off. Animosity and hostility. Fischer's continuous war with Egon Pearson and Jerzy Nyman.
]
.footnote[
[1] Clayton (2021) [2] Acree (2021)
]

.pull-right[
### Key inherited concepts
- Random variable
- Standard deviation, variance
- Correlation, regression
- [Unbiased/consistent/efficient/etc] estimator
- Significance testing, p-value, confidence interval
- Multiple tests for various situations
]
---
# Logical probability

- Inference is an extension of Boolean algebra with an implication operator `$A\implies B$` ("A implies B").
- Implication does not assert that either `$A$` or `$B$` is true, but merely that `$A\overline{B}$` is FALSE, i.e. that `$(\overline{A}+B)$` is TRUE. Also can be expressed as `$A=AB$`: propositions `$A$` and `$AB$` have the same truth value.

Desiderata for plausibility reasoning:

- Representation of degrees of plausibility by real numbers;
- Qualitative correspondence with common sense;
- Consistency:
  - If a conclusion can be reasoned out in more than one way, then every possible way must lead to the same result
  - The robot always takes into account all of the evidence it has
relevant to a question. [...] the robot is completely nonideological.
  - The robot always represents equivalent states of knowledge by
equivalent plausibility assignments.

Randomization does not change the state of the world. It alters our knowledge. Mind-projection fallacy.
.footnote[
[1] Jaynes(2003)
]
---
# Logical probability
### Rules of plausibility reasoning

- The product rule
 `$$p(AB|C)=p(A|C)p(B|AC)=p(B|C)p(A|BC)$$`
 - The sum rule
`$$p(A|B)+p(\overline{A}|B)=1\\p(A+B|C)=p(A|C)+p(B|C)-p(AB|C)$$`

Interpretation of plausibility
.pull-left[
.center[
`$A \implies B$`
]]
.pull-right[
- `$B$` is true, therefore `$A$` becomes more plausible
- `$A$` is false, therefore `$B$` becomes less plausible
]

.footnote[
[1] Jaynes (2003)
]
---
# Subjectivist probability

Beliefs without actions are abstract. Probabilities can be understood only in the context of an agent.

#### Bruno de Finetti (1906-1985)

- "PROBABILITY DOES NOT EXIST!"
- Interpretation of probability as personal attitude to uncertainty is inseparable from willingness to take risk
- Unexperienced uncertainty (nothing at stake) is not a real uncertainty
- Uncertainty can *only* be observed (and probabilities can be extracted) from betting behavior

#### Frank Ramsey (1903-1930)<sup>[1]</sup>
- Probabilities are subjective. Both prior beliefs and previously experienced frequencies are relevant for decision
- Beliefs can be separated from preferences through the definition of "ethically neutral proposition" (uninfluenced decision)

.footnote[
[1]N-E Sahlin
]
---
# Knightian probability

Known unknowns are not the same as unknown unknowns

Knight (1921):
- risk - inherent randomness in the world
- uncertainty - lack of knowledge

Imprecise probability:
- What to do when one can not assign a single probability number?
- Probability represented by intervals without any distribution assigned to them (NOT uniform!)

Bayesian approach to imprecise probability
- Sets of priors
- Propagate (carry on) "the uncertainty" through your analysis and communicate it to the decision maker.

---
# Time to reflect

1. How can different interpretations of probability affect scientist's epistemology?

1. Which perspectives on probability have you encountered in you research experience?
---

class: middle, inverse

# Bayesian data analysis:

.f2.lh-title[For each possible explanation of the data

Count all the ways the data can happen

Explanations with more ways to produce data are more plausible
]
McElreath(2020)
---
# Bayesian data analysis

.f1[<svg aria-hidden="true" role="img" viewBox="0 0 448 512" style="height:1em;width:0.88em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M352 160v-32C352 57.42 294.579 0 224 0 153.42 0 96 57.42 96 128v32H0v272c0 44.183 35.817 80 80 80h288c44.183 0 80-35.817 80-80V160h-96zm-192-32c0-35.29 28.71-64 64-64s64 28.71 64 64v32H160v-32zm160 120c-13.255 0-24-10.745-24-24s10.745-24 24-24 24 10.745 24 24-10.745 24-24 24zm-192 0c-13.255 0-24-10.745-24-24s10.745-24 24-24 24 10.745 24 24-10.745 24-24 24z"/></svg> with 4 blue or white marbles]

.pull-left[
## Possibilities
.f3[1) <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg>]

.f3[2) <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg>]

.f3[3) <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg>]

.f3[4) <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg>]

.f3[5) <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8z"/></svg>]
]

.pull-left[
## Observables
.f3[<svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8z"/></svg>]

For each of the (bag composition) possibilities, how many ways could we observe the data at hand [<svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8z"/></svg>]

Possibility 1 <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> is impossible. The bag can not consist of white marbles only

How about possibility 2 <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg>?
]
---
background-image: url(fig/garden-forking-data.png)
background-position: bottom
background-size: 80%

# Possibility 2 <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg>

Three "rounds" of marbles represent three draws. There's total of 3 ways to see the [<svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8z"/></svg>] if the bag contains <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg>

---
# Garden of forking data

.pull-left[
### Possibile <br>contents
.f3[1) <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg>]

.pull-right[
### Ways to produce <br> [<svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg> <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8z"/></svg>]
.f3[0    => 0/20 = 0]

.f3[3    => 3/20 = 0.15]

.f3[8    => 8/20 = 0.4]

.f3[9    => 9/20 = 0.45]

.f3[0    => 0/20 = 0]
]

```r
ways <- c(0,3,8,9,0)
ways/sum(ways)
```

```
## [1] 0.00 0.15 0.40 0.45 0.00
```
---
# Time for reflection

1. Let's say we pull another marble from the bag and it is <svg aria-hidden="true" role="img" viewBox="0 0 512 512" style="height:1em;width:1em;vertical-align:-0.125em;margin-left:auto;margin-right:auto;font-size:inherit;fill:#2a3990;overflow:visible;position:relative;"><path d="M256 8C119 8 8 119 8 256s111 248 248 248 248-111 248-248S393 8 256 8zm0 448c-110.5 0-200-89.5-200-200S145.5 56 256 56s200 89.5 200 200-89.5 200-200 200z"/></svg>. How could we update the analysis?

2. Which content is more plausible now?

<details closed>
<summary> <span title='Click to Open'> Solution </span> </summary>

```r
ways_w <- c(4,3,2,1,0)
ways <- ways * ways_w
ways/sum(ways)
```

```
## [1] 0.0000000 0.2647059 0.4705882 0.2647059 0.0000000
```
</details>
<br>
---

#Rules of Bayesian updating
.f4[
1. State a causal model for how the observations arise, given each possible explanation
2. Count ways data could arise for each explanation
3. Relative plausibility is relative value from step (2) above
]

## Globe tossing
.pull-left[
.f4[
1. For each possible **proportion of water**,<br>
1. Count number of ways data could happen. <br>
1. Must state how observations are generated <br>
]
]
.pull-right[
.f2[W, L, W, W, W, L, W, L, W]
]
---
# Globe tossing

```r
library(tidyverse)
toss = c("w", "l", "w", "w" , "w", "l", "w", "l", "w")
toss_df <- tibble(toss=toss) %>%
           mutate(n_trials  = seq(n()),
                  n_success = cumsum(toss == "w"))
```
.pull-left[

```r

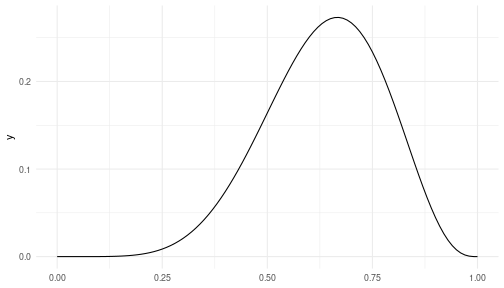

i <- 9 # how many trials to include
ntrials <- toss_df$n_trials[i]
nsuccess <- toss_df$n_success[i]
ggplot()+
  geom_function(fun=dbinom,
                args=list(x=nsuccess,
                          size=ntrials))+
  theme_minimal()+
  xlim(0,1)
```
<br>
**Question:**
How can we visualize prior belief(prior to any observations)?
]
.pull-right[
![](01-BADT-introduction_files/figure-html/unnamed-chunk-7-1.png)
]
---

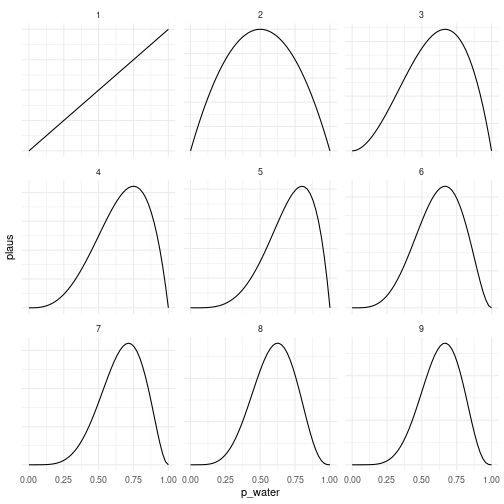

# Globe tossing
.pull-left[
![](01-BADT-introduction_files/figure-html/unnamed-chunk-8-1.png)
]
.pull-right[
### Binomial distribution
https://en.wikipedia.org/wiki/Binomial_distribution

Look for density (PDF/PMF)

`$$f(x|n,p)=\binom{n}{p}p^kq^{n-k}$$`

```r
p_grid <- seq(0,1,length.out=50)
(m_plaus <- choose(9,6)*p_grid^6*
                       (1-p_grid)^(9-6))
plot(x=p_grid,y=m_plaus, type = "l")
```

```r
m_plaus1 <- dbinom(x=6,size=9,prob=p_grid)
plot(x=p_grid,y=m_plaus1, type = "l")
```

```r
all.equal(m_plaus, m_plaus1)
```
]

---
# A model

$$
`\begin{aligned}
w &\sim Binomial (n,p) \\
n &=w+l\\
p &\sim Uniform(0,1)
\end{aligned}`
$$
Parameters: p, the proportion of water on the glove. Lookup the Uniform density function.

## Bayesian updating
`$$Pr(p|W;L)=\frac{Pr(W;L|p)Pr(p)}{Pr(W;L)}$$`
Repeat after me:
1. For each possible **proportion of water** `$p$`,<br>
1. Count number of ways data could happen; `$Pr(W;L|p)Pr(p)$` <br>
1. Must state how observations are generated <br>

Relative sizes of products in (2) are the posterior probabilities
---
# Grid approximation

```r
n <- 3
p_grid <- seq(0,1, length.out=n)
prob_p <- rep(1, n)

prob_data <- dbinom(6, size=9, prob = p_grid)
posterior <- prob_data*prob_p
# normalize the relative plausibilities
posterior <- posterior/sum(posterior)
```

**Question:**
1. Inspect each vector with `str`
2. Plot each vector with `plot(...)`. Use `type="l"` for the line plot
3. Increase the size of the grid to 1e5. Repeat 1-2.
4. Replace the prior with `$Beta(3,1)$`. Compare the posteriors.

---
# Predictive distribution

We can sample from the posterior with

```r
p_samples <- sample(p_grid, prob=posterior, size=1e3, replace=TRUE)
```

And use the samples to predict new observations

```r
pred_w <- rbinom(1e4, size=9, prob=p_samples)
```

**Question:**
1. How many observations are in the `pred_w` vector. Why?
1. Compute median, mean, a number of quantiles and report a 95% credible interval for the estimate of water samples (spotting on the globe).
.f3[
>Probability theory is a method of
logically deducing implications
of data under assumptions that
you must choose. Any framework selling you more
is hiding assumptions
> -- Richard McElreath
]

---
# Conjugate models

Wikipedia: Beta distribution https://en.wikipedia.org/wiki/Beta_distribution

When we use Beta prior with Binomial likelihood the posterior is also a Beta distribution. This property is called "conjugacy", introduced by Raiffa & Schlaifer (2000), first edition published in 1961. https://en.wikipedia.org/wiki/Conjugate_prior

**Question**

How would you describe the typical behavior of a `$Beta(\alpha, \beta)$` variable `$\pi$` when `$\alpha=\beta$`?

Using the same options as above, how would you describe the typical behavior of a `$Beta(\alpha, \beta)$` variable `$\pi$` when `$\alpha>\beta$`?

For which model is there greater variability in the plausible values of  `$\pi$`, `$Beta(20,20)$` or `$Beta(5,5)$`?

`$$E(\pi)=\frac{\alpha}{\alpha+\beta} \\
Mode(\pi)=\frac{\alpha-1}{\alpha+\beta-2}\\
Var(\pi)=\frac{\alpha\beta}{(\alpha+\beta)^2(\alpha+\beta+1)}$$`
---
# Comparing to conjugate model solution

For conjugate models posterior hyperparameters can be found in closed form. For Beta-Binomial:

`$$\alpha+\sum_{i=1}^{n} x_{i},\quad \beta+\sum_{i=1}^{n} N_{i}-\sum_{i=1}^{n} x_{i}$$`

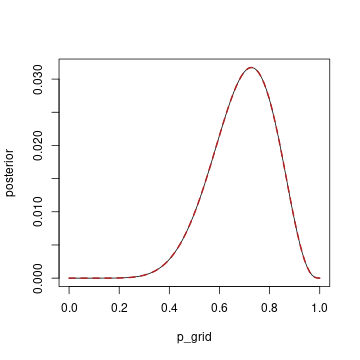

In our globe tossing example we have a single datapoint `$N=9$`, `$x=6$`. Therefore if our prior is `$Beta(3,1)$` the posterior should be `$Beta(3+6, 1+9-6)$` or `$Beta(9,4)$`. Lets compare it to grid-approximated solution.
.pull-left[

```r
n <- 1e2
p_grid <- seq(0,1, length.out=n)
prob_p <- dbeta(p_grid,3,1)

prob_data <- dbinom(6, size=9, prob = p_grid)
posterior <- prob_data*prob_p
posterior <- posterior/sum(posterior)

posterior_a <- dbeta(p_grid, 9, 4)
posterior_a <- posterior_a/sum(posterior_a)

plot(p_grid, posterior, type="l")
lines(p_grid, posterior_a, lty=2, lwd=2, col="firebrick")
```
]
.pull-right[
![](01-BADT-introduction_files/figure-html/beta-conj-run-1.png)
]

---
class: center, middle, inverse

# Hands-on with R/Stan

---

# References

Acree MC. 2021. The Myth of Statistical Inference [Internet]. Cham: Springer International Publishing; [accessed 2022 Jan 6]. https://doi.org/10.1007/978-3-030-73257-8

Clayton A. 2021. Bernoulli’s fallacy: statistical illogic and the crisis of modern science. New York: Columbia University Press.

McElreath R. 2020. Statistical Rethinking: A Bayesian Course with Examples in R and Stan [Internet]. 2nd ed. New York, NY: Chapman and Hall/CRC; [accessed 2020 May 3]. https://doi.org/10.1201/9780429029608

Raiffa H, Schlaifer R. 2000. Applied statistical decision theory. Wiley classics library ed. New York: Wiley.

Sahlin N-E. 1990. The philosophy of FP Ramsey. [place unknown]: Cambridge University Press.

---

class: center, middle

# Thanks!

Slides created via the R package [**xaringan**](https://github.com/yihui/xaringan).

The chakra comes from [remark.js](https://remarkjs.com), [**knitr**](https://yihui.org/knitr/), and [R Markdown](https://rmarkdown.rstudio.com).
